1932-1933 Willys 6-90, 6-90A Wire Wheel Hubcap - Original

1932-1933 Willys 6-90, 6-90A Wire Wheel Hubcap

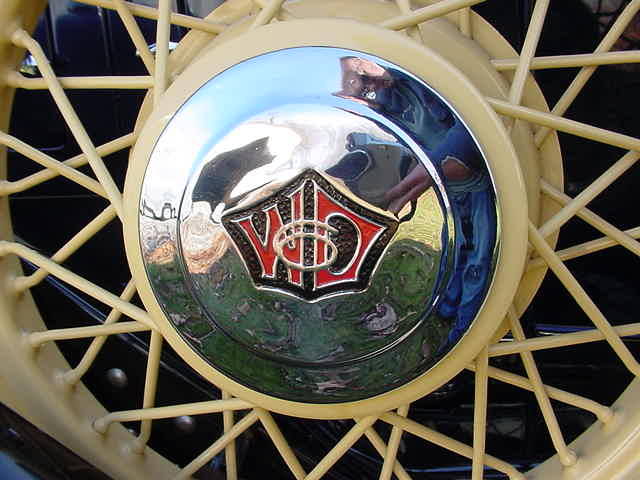

The photo above shows an original cap and wire wheel.  The 18" wheel has 40 spokes and a 5 hole lug pattern on a 4.5" circle.  Overall width = 4 1/2", Overall diameter = 19 1/2".  It measures 10 1/4" across the rear brake drum mounting and 5 3/4" across the hubcap opening.  Both new and aftermarket hubcaps have inner "skins".  Aftermarket caps, such as the one pictured below, can be found with aluminum skins or brass chrome plated skins.  The easiest way to determine original or aftermarket is by the mounting tabs.  Original tabs are rounded but aftermarket have a sharp pointed clip.

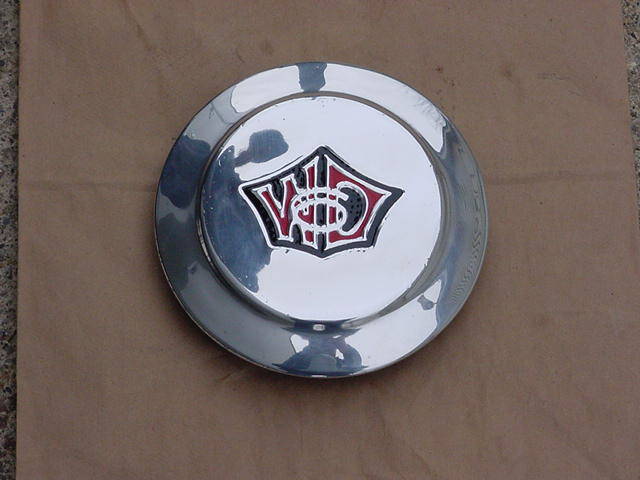

1932-1933 Willys 6-90, 6-90A Wire Wheel Hubcap - Aftermarket
